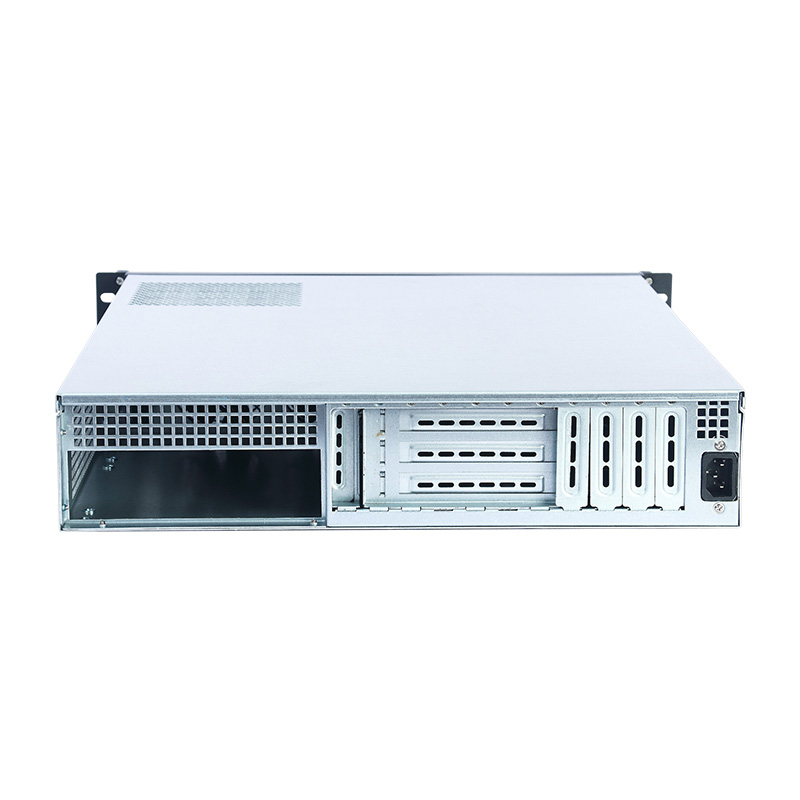

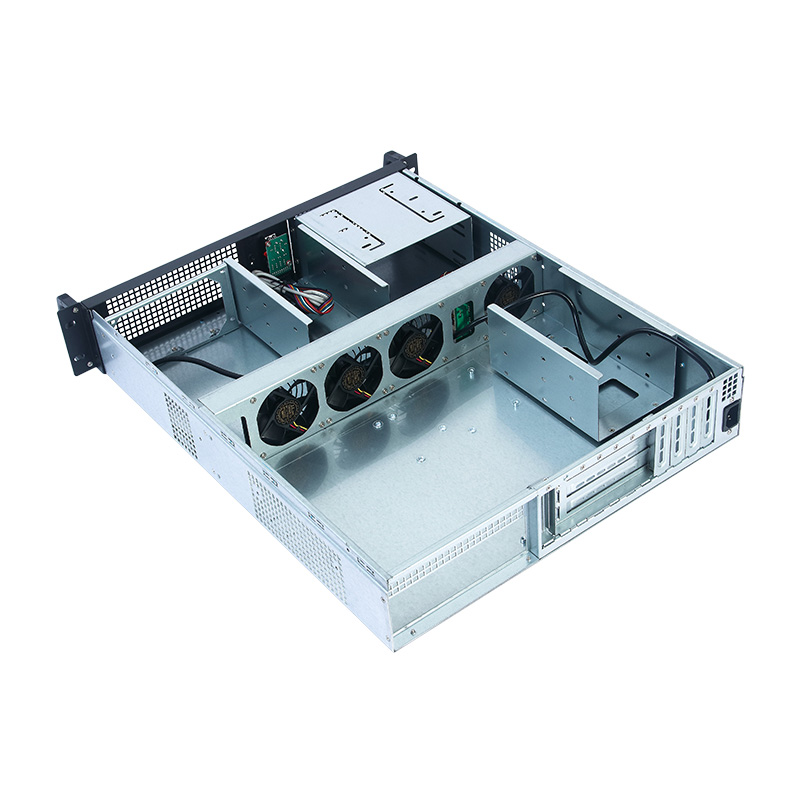

2U 19 inch rackmount PC case with 6*3.5 inch HDD long case

Short Description:

Model: 2U550WL

Product Name: 19-Inch 2u-Ipc550 Rack-Mount Computer Case

Product Weight: Net Weight 6kg, Gross Weight 10kg

Case Material: High-Quality Flowerless Galvanized Steel

Chassis Size: Width 482*Depth 550*Height 88.9(Mm) Including Mounting Ears Width 429*Depth 550*Height 88.9(Mm)
Without Mounting Ear

Packing Size: Corrugated Paper 560*680*170(Mm)

Material Thickness: 1.2mm

Expansion Slot: Support 4 Half-Height Cards (In-Line)
Support 3 Full-Height Cards (Horizontal Insertion)

Support Power Supply: Atx Power Supply Ps2 Power Supply

Supported Motherboards: Atx(12"*10"), Microatx(9.6"*9.6"), Mini-Itx(6.7"*6.7") 305*254mm Backward Compatible

Support Cd-Rom Drive: Two 5.25" Cd-Roms

Support Hard Disk: Six 3.5"Hdd Hard Drives (Six 2.5"Ssd Solid State Drives Can Be Installed)

Support Fan: 4 Low-Noise Double Balls

Panel Configuration: Usb2.0*2Power Switch*1Reset Switch*1Power Indicator*1Hard Disk Indicator*1Network Indicator*1

Support Slide Rail: Support

Send email to us Video Download as PDF Download as World

Product Detail

Product Tags

Product Description

Support power supply: ATX power supply PS\2 power supply.

Supported motherboards: ATX(12"*10"), MicroATX(9.6"*9.6"), Mini-ITX(6.7"*6.7") 305*254mm backward compatible.

Support CD-ROM drive: Two 5.25" CD-ROMs.

Support hard disk: Six 3.5"HDD hard drives (six 2.5"SSD solid state drives can be installed).

Support fan: 4 low-noise double balls.

Panel configuration: USB2.0*2\power switch*1\reset switch*1\Power indicator*1\hard disk indicator*1\Network indicator*1.

Support slide rail: support.

Product Specification

• Dimensions(mm)	482(W)550(D)88.9mm(H)
• Main Board	12"10"(305 254MM)
• Hard Disk	Support six 3.5-inch hard drives
• CD-ROM	Location for two 5.25" CD-ROMs
• Power	ATX , PS\2
• Fan	FOUR 8025 fan
• Expansion Slot	4 half-height vertical slots, 3 full-height horizontal slots
• Panel Setting	Two USB2.0; One power switch; One reset switch; One power indicator; One hard disk indicator; One network indicator
• Case Material	Ma Steel flowers-free zinc plating
• Material Thickness	1.2MM
• Packing size	56* 68*17CM (0.065CBM)
• Gross weight	10KG
• Net weight	6KG
• Container Loading Quantity	20"-370 40"- 830 40HQ"- 1050
