1U hot-swappable four hard disk storage server chassis

Short Description:


  • Model: MMS-3104-M
  • Product name: 1U server chassis
  • Case Material: High-quality flowerless galvanized steel
  • Material thickness: 1.0MM
  • :
  • Product Detail

    Product Tags

    Product Description

    Enterprise Internet applications, enterprise high-intensity computing; 2. Internet applications (Web, Mail, file server, database, integration, online game server); 3. Virtual hosting, ASP, access and other applications; 4. Network storage; 5 Electricity, power grid, transportation, industrial automation equipment, finance, manufacturing, weather monitoring and other fields.
    Introducing the 1U Hot-Swappable Four-Hard Disk Storage Server Chassis MMS-3104-M!
    Say hello to the most powerful storage solution you've ever seen! With this amazing 1U server chassis, you can supercharge your data storage capabilities like never before.

    12
    15
    4

    Product Specification

    Model MMS-3104-M
    Product name 1U server chassis
    Case Material High-quality flowerless galvanized steel
    Chassis size 438.4mm*43.5mm*550mm
    Material thickness 1.0MM
    Expansion Slot
    Supports 1 horizontal full-height PCI-e expansion slot
    Support power supply Supported specifications: GW-EPS1U400WB Great Wall 400W single power supply (optional)Support specifications: GW-ERP1U450-2H Great Wall 450W 1+1 redundant power (optional)
    Supported motherboards
    Maximum support CEB (12 * 10.5) / ATX (12 * 9.5) / Micro ATX standard motherboard
    Support hard disk
    front supports 4 * 3.5 "hot-swappable hard disk slots (compatible with 2.5")
    Support fan
    Overall shock absorption/standard 3 4028 system cooling fan modules, up to 6 (optional)(Silent version/PWM, high quality fan with 50,000 hours warranty)
    Panel configuration
    POWER switch/RESET button, power on/hard disk/network/alarm/status indicator light,, Support 2 * USB3.0 ports/1 COM port (optional)
    Support slide rail  Support

    Product Display

    请自己购买,英文
    12
    15
    4
    2
    3
    5
    14

    Key Features:

    Chassis model: MMS-3104-M
    Size and material: 438.4mm*43.5mm*550mm Shanghai Baosteel SGCC 1.0

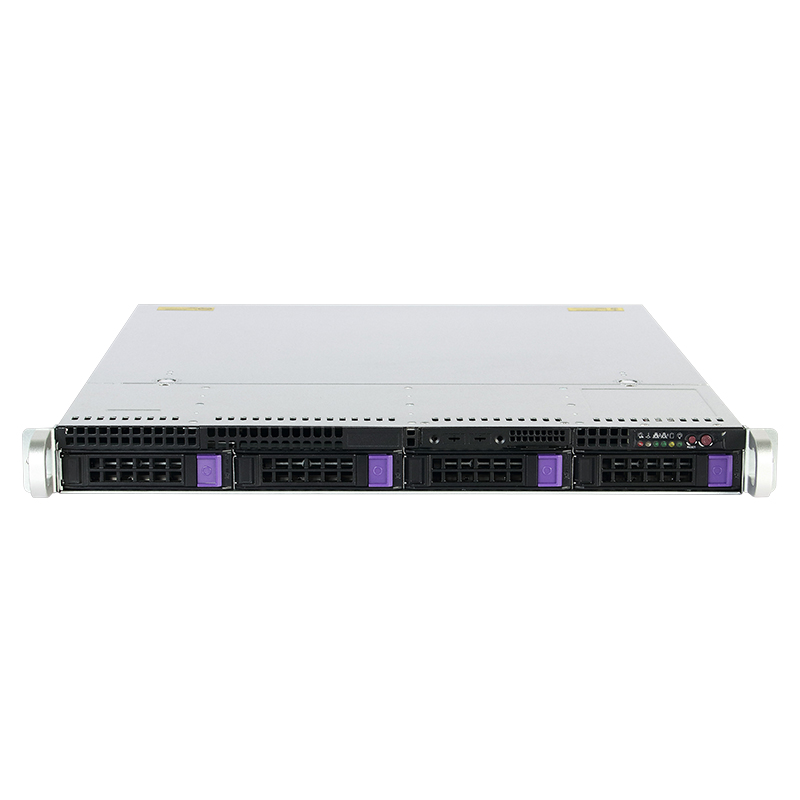

    Front description: POWER switch/RESET button, power on/hard disk/network/alarm/status indicator light,
    , Support 2 * USB3.0 ports/1 COM port (optional)
    Storage support: front supports 4 * 3.5 "hot-swappable hard disk slots (compatible with 2.5")
    PCI-e expansion: Supports 1 horizontal full-height PCI-e expansion slot

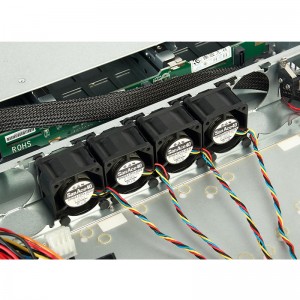

    System fan: Overall shock absorption/standard 3 4028 system cooling fan modules, up to 6 (optional)
    (Silent version/PWM, high quality fan with 50,000 hours warranty)
    Backplane: 6GB SATA/SAS direct-connect backplane
    Power supply:
    Supported specifications: GW-EPS1U400WB Great Wall 400W single power supply (optional)
    Support specifications: GW-ERP1U450-2H Great Wall 450W 1+1 redundant power (optional)
    Motherboard: Maximum support CEB (12 * 10.5) / ATX (12 * 9.5) / Micro ATX standard motherboard

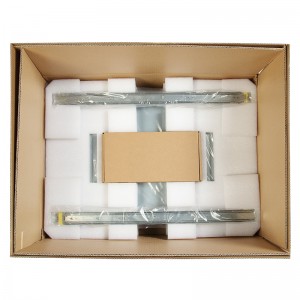

    Packaging: EPE + inner and outer box double layer system packaging

    Boost your storage capacity with hot-swappable four-hard disks, allowing you to easily swap drives without interrupting your server's performance. Say goodbye to downtime and hello to seamless data management.
    Our server chassis is meticulously engineered with high-quality galvanized steel, providing durability and protection for your valuable data.
    Worried about space? With its compact size, this chassis fits perfectly in any server cabinet, making it an ideal choice for businesses of all sizes.
    Need expansion? Our chassis supports a full-height PCI or PCI-E adapter card, giving you the freedom to expand your server's capabilities even further. The possibilities are endless!

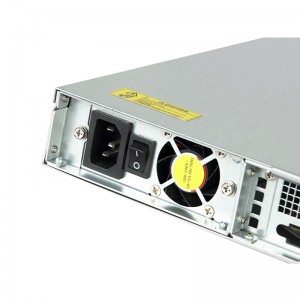

    Power your server with our 1U standard or 1U 1+1 power supply options, ensuring a reliable and efficient performance.
    Get your hands on the 1U Hot-Swappable Four-Hard Disk Storage Server Chassis MMS-3104-M today and take your storage game to the next level!
