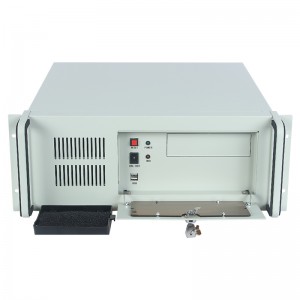

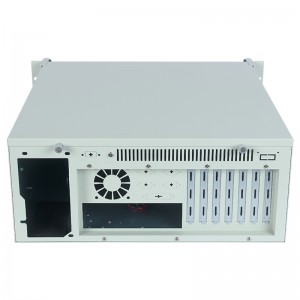

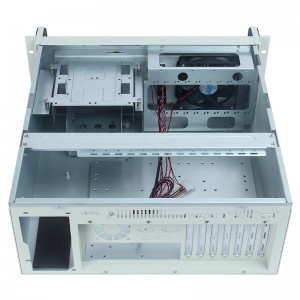

3C Application Intelligent Transportation atx rackmount case

Short Description:


  • Model: 4U-450Z-A
  • Product name: 19-inch rack-mounted industrial control chassis
  • Chassis size: width 482 × depth 450 × height 176 (MM) (including mounting ears and handles)
  • Product color: electrostatic powder spraying on the outside, industrial gray fine sand texture, protection on the inside
  • Material: environmentally friendlyfingerprint resistanthigh quality SGCC galvanized sheet
  • Thickness: 1.2MM
  • Support optical drive: 2 5.25'' optical drive bays1 soft optical drive bay
  • Product weight: Net weight 9.6KGGross weight 11.3KG
  • Supported power supply: standard ATX power supply PS/2 power supply (redundant power supply bit can be customized)
  • Supported graphics cards: 7 full-height PCI straight slots (14 can be customized)
  • Support hard disk: support 3.5'' 3 or 2.5'' 3 (optional)
  • Support fans: 1 front 12025 hydraulic silent large fan/dust-proof filter cover
  • Panel: USB2.0*2Power switch*1Restart switch*1Power indicator light*1Hard disk indicator light*1
  • Supported motherboard: PC motherboards of 12''*9.6'' (305*245MM) and below (ATXM-ATXMINI-ITX motherboards)
  • Support slide rail: support
  • Packing size: 560* 530*260CM (0.0771CBM)
  • Container Loading Quantity: 20": 337 40": 700 40HQ": 881
  • Product Detail

    Product Tags

    Product Description

    atx rackmount case for Intelligent Transportation Applications FAQs

    1. What is an ATX rack mount case? How does it apply to smart transportation applications?

    An ATX rack mount case is a computer case designed to be installed in a rack. It is commonly used in smart transportation applications to house computer systems that control various aspects of transportation infrastructure, such as traffic lights, toll collection systems, and road monitoring equipment.

    2. What are the main features of ATX rack mount chassis for intelligent transportation applications?

    Key features of ATX rack-mount chassis for smart transportation applications include rugged construction to withstand harsh environments, multiple expansion slots for add-in cards, easy-service hot-swappable drive bays, and integration with standard ATX motherboards and components compatibility.

    3. How does the ATX rack-mount chassis improve the reliability and performance of intelligent transportation systems?

    ATX rack mount cases are designed to protect internal components from dust, moisture, and other environmental hazards, ensuring the reliability of your computer system. Additionally, the rack-mountable design integrates easily into existing infrastructure and provides efficient cooling for optimal performance.

    4. Can the ATX rack-mount chassis meet the specific requirements of different intelligent transportation applications?

    Yes, ATX rackmount chassis for smart transportation applications are available with various customization options such as different form factors, power options, and expansion features to meet the specific needs of different transportation projects.

    5. What are the typical applications of atx rackmount case in intelligent transportation systems?

    Typical applications of atx rackmount case in intelligent transportation systems include traffic signal control systems, electronic toll collection systems, traffic monitoring and management systems, and on-board computers for public transportation vehicles.

    800 1111
    800 111112
    800 111

    Product Display

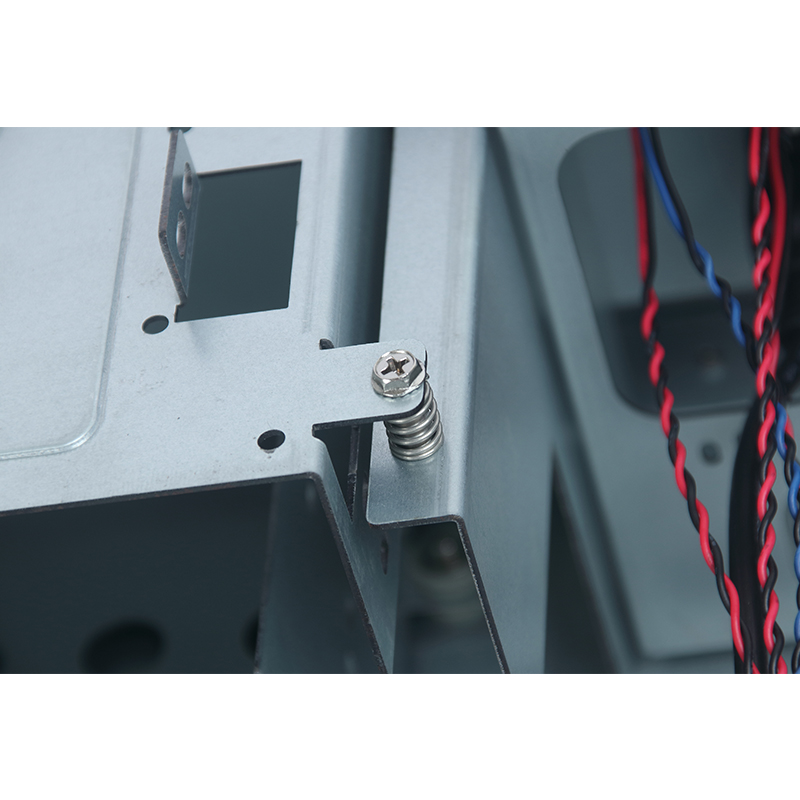

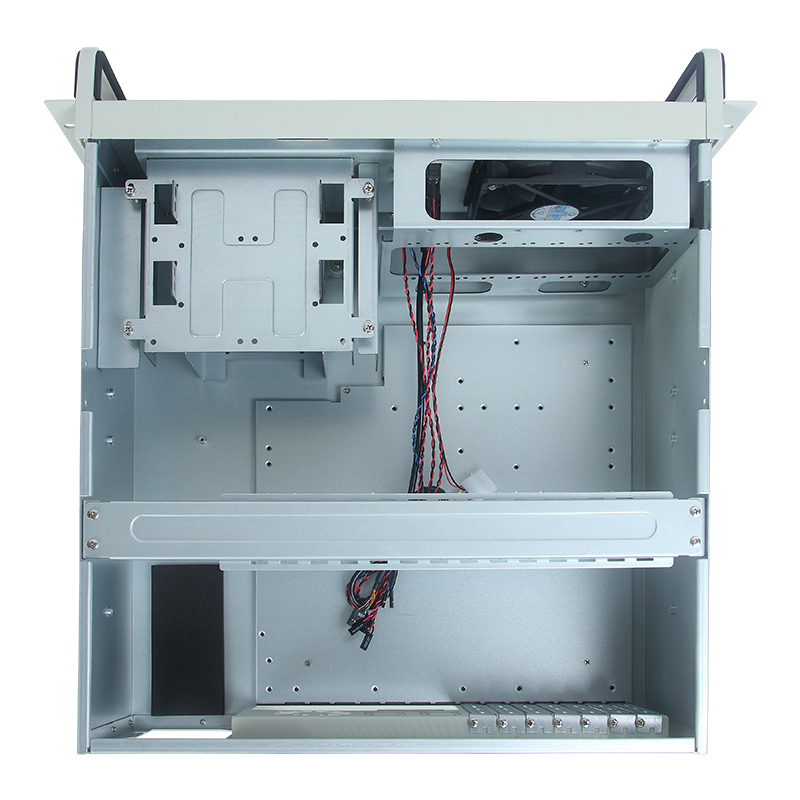

    包装 避震螺丝 尺寸 导轨 防尘棉 后窗 内部 前面板 手柄 显卡压条

    FAQ

    We provide you with:

    Large inventory

    Professional Quality Control

    Good packaging

    Delivery on time

    Why choose us

    1. We are the source factory,

    2. Support small batch customization,

    3. Factory guaranteed warranty,

    4. Quality Control: The factory will test the goods 3 times before delivery

    5. Our core competitiveness: quality first

    6. The best after-sales service is very important

    7. Fast delivery: 7 days for personalized design, 7 days for proofing, 15 days for mass products

    8. Shipping method: FOB and internal express, according to the express you specify

    9. Payment method: T/T, PayPal, Alibaba Secure Payment

    OEM and ODM services

    Through our 17 years of hard work, we have accumulated rich experience in ODM and OEM. We have successfully designed our private molds, which are warmly welcomed by overseas customers, bringing us many OEM orders, and we have our own brand products. You just need to provide pictures of your products, your ideas or LOGO, we will design and print on the products. We welcome OEM and ODM orders from all over the world.

    Product Certificate

    Product Certificate_1 (2)
    Product Certificate_1 (1)
    Product Certificate_1 (3)
    Product Certificate2
