Made in China NVR hot-swappable FIL server 2u case

Short Description:


  • Model: MMS-8208-1.0F
  • Product Name: server 2u case
  • Case Material: High-quality flowerless galvanized steel
  • Chassis size: 438mm*88mm*660mm
  • Material thickness: 1.0MM
  • Expansion slots: supports 7 half-height PCI-e expansion slots
  • Support power supply: Redundant power supports 550W/800W/1300W 80PLUS platinum series CRPS 1+1 high-efficiency redundant power supply, Single battery supports 600W 80PLUS single battery high-efficiency power supply (single battery bracket optional)
  • Supported motherboards: Supports EEB (12*13)/CEB (12*10.5)/ATX (12*9.5)/Micro ATX standard motherboard
  • Support hard disk: The front supports 8*3.5" hot-swappable hard drive bay (compatible with 2.5"), 2*3.5"/2.5" built-in hard drive bay, The rear supports 2*2.5" built-in hard drive bay, (optional) supports 2*2.5" NVMe hot-swappable OS module
  • Support fan: overall shock absorption/standard configuration of 4 8038 hot-swappable system cooling fan modules. (Silent version/PWM, high-quality fan warranty 50,000 hours), Compatible with wind and liquid quick interchange design, (optional) standard water cooling module to solve 1100W dual CPU liquid cooling
  • Panel configuration: POWER switch/RESET button, boot/hard disk/network/alarm/status indicator light, The front supports 2*USB3.0 interfaces
  • Product Detail

    Product Tags

    Introduce

    In recent years, China has gained a reputation for its leadership in technological manufacturing, providing high-quality products at competitive prices. One of the cutting-edge developments is the hot-swappable FIL server 2U chassis for network video recorders (NVRs). In this blog, we’ll take a closer look at the great features and benefits of this innovative product made in China.

    Unleash the power of hot-swap functionality

    The NVR’s hot-swappable capabilities are a game-changer in server management. It allows hard drives to be simply added or removed without interrupting the operation of the system. This feature ensures uninterrupted video recording, making it ideal for home and professional surveillance solutions.

    Increase flexibility and efficiency

    With the hot-swappable FIL Server 2U chassis, professionals can seamlessly expand or upgrade their storage capacity without downtime. The ability to add or replace hard drives on the fly provides unprecedented flexibility and efficiency, minimizing system maintenance requirements and maximizing operational productivity. This makes it ideal for businesses that rely heavily on video surveillance.

    Rugged design and durability

    The FIL server 2U chassis is manufactured in China, reflecting China's commitment to first-class craftsmanship. This NVR chassis is designed to withstand rigorous operating environments. It is made of high-quality materials to ensure long-lasting durability and protect your expensive NVR system from damage or failure caused by environmental conditions such as dust, high temperature, or vibration.

    Unparalleled cooling system

    Efficient cooling is critical to maintaining NVR system longevity and performance. FIL server chassis 2u uses advanced cooling technology to prevent overheating and ensure optimal system functionality. Its thoughtful design allows for proper airflow and thermal regulation while minimizing noise levels, providing a stable and comfortable environment for the NVR.

    Simplified installation and maintenance

    Another advantage of the FIL 2u server case is its user-friendly design, which allows for easy installation and maintenance. Its modular construction provides easy access to internal components, simplifying the setup process and minimizing downtime. This saves IT professionals time and effort, making it ideal for modern businesses that require efficient solutions.

    Achieve cost effectiveness without compromising quality

    China's commitment to affordability and quality is reflected in the hot-swappable FIL 2u server chassis. Combining these two essential features, it provides businesses with a cost-effective solution without compromising performance or durability. Compared with similar international products, this product made in China can save a lot of costs while ensuring first-class quality.

    in conclusion

    The hot-swappable FIL server 2u case reflects China’s unremitting pursuit of technological excellence and cost-effective solutions. Businesses looking for a high-performance NVR system can now benefit from the unparalleled advantages offered by this innovative product. Its hot-swappable functionality, rugged design, cooling efficiency, and ease of installation and maintenance make it an excellent choice for surveillance applications. So, embrace the Made in China revolution and equip your surveillance ecosystem with the superior 2U FIL server case today.

    2不带字
    1不带字
    3不带字

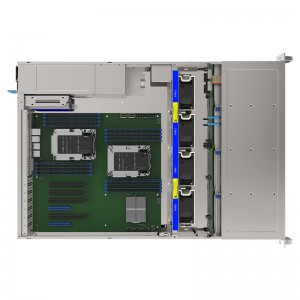

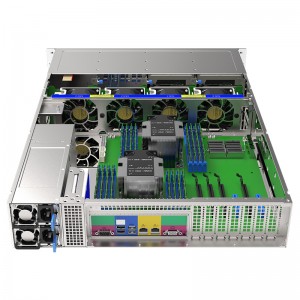

    Product images

    请自己购买,英文
    2不带字
    1不带字
    3不带字

    Product Specification

    Basic Parameters
    Type Rackmount Server Case
    Product Structure 2U
    M/B Size Support(inch) Supports EEB (12*13)/CEB (12*10.5)/ATX (12*9.5)/Micro ATX standard motherboard
    M/B Brand Support Suitable for INTEL, ASUS, Supermicro, Taian, MSI, Gigabyte
    PSU Support Redundant power supports 550W/800W/1300W 80PLUS platinum series CRPS 1+1 high-efficiency redundant power supply, Single battery supports 600W 80PLUS single battery high-efficiency power supply (single battery bracket optional)
    Backplane Supports 8*SAS/STA 12Gbps direct-connect backplane, (optional) 4*SAS/STA +4NVMe hybrid backplane
    HDD Support The front supports 8*3.5" hot-swappable hard drive bay (compatible with 2.5"), 2*3.5"/2.5" built-in hard drive bay, The rear supports 2*2.5" built-in hard drive bay, (optional) supports 2*2.5" NVMe hot-swappable OS module
    Cooling System overall shock absorption/standard configuration of 4 8038 hot-swappable system cooling fan modules. (Silent version/PWM, high-quality fan warranty 50,000 hours), Compatible with wind and liquid quick interchange design, (optional) standard water cooling module to solve 1100W dual CPU liquid cooling
    Intelligent Temperature Control Support (Optional)
    Rail Kit Optional
    Function Parameter
    Interface:POWER switch/RESET button, boot/hard disk/network/alarm/status indicator light, The front supports 2*USB3.0 interfaces
    Expansion slots:supports 7 half-height PCI-e expansion slots
    Appearance Parameters
    Material Information Material Premium SGCC
      Thickness T=1.0mm
    Product Size (mm) 660mm×438mm×88mm(D*W*H)
    Scope Of Application
    1.Enterprise Internet applications, enterprise high-intensity computing;2. Internet applications (Web, Mail, file server, database, integration, online game server);3. Virtual hosting, ASP, access and other applications;4. Network storage;

    5 Electricity, power grid, transportation, industrial automation equipment, finance, manufacturing, weather monitoring and other fields.
