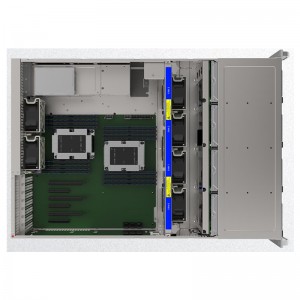

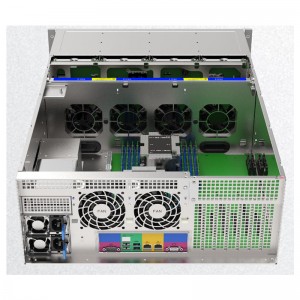

PHA Network Security 4U Enterprise Office server pc case

Short Description:

Model: MMS-8424

Product Name: 4U storage hot-swappable server chassis

Product size: 438mm*177mm*660mm

Supported motherboard: Support EEB (12 * 13) / CEB (12 * 10.5) / ATX (12 * 9.5) / Micro ATX standard motherboard

Number of hard drives: The front supports 24*3.5” hot-swappable hard disk slots (compatible with 2.5”), The rear supports 2*2.5” internal hard disks and 2*2.5” NVMe hot-swappable OS modules (optional)

Expansion slot: full height card*7

Standard fan: Overall shock absorption / standard 4 8038 hot-swappable system cooling fan modules (Silent version/PWM, high quality fan with 50,000 hours warranty)

Standard backplane: Supports 24*SAS/SATA 12Gbps expansion backplane, 2 12*SAS/SATA 12Gbps direct connection backplanes

Front panel light panel: POWER switch/RESET button, power on/hard disk/network/alarm/status indicator lights,

Supported power supply: Redundant power supports 550W/800W/1300W/1600W 80PLUS Platinum series CRPS 1+1 high-efficiency redundant power supply Single battery supports 600W 80PLUS single battery high-efficiency power supply (single battery bracket optional)

Support slide rail: Support

Send email to us Video Download as PDF Download as World

Product Detail

Product Tags

Introduce

PHA Network Security 4U Enterprise Office server pc case FAQs

1. What is PHA Network Security 4U Enterprise Office Server Computer Case?
PHA Network Security 4U Enterprise Office Server Computer Case is a high-quality server case specially designed for enterprise-level offices. It offers excellent safety features and efficient cooling capabilities.

2. Is this server computer case compatible with all types of servers?
Yes, the PHA Network Security 4U Enterprise Office Server PC Case is designed to accommodate various types of servers, including rack and tower servers. It offers a variety of options to meet your specific server requirements.

3. How does the cooling system of this server rack case work?
server rack cases feature efficient cooling mechanisms including multiple fans and radiators to provide effective airflow and heat dissipation. This helps maintain the optimal operating temperature of the server and prevent overheating.

4. Can I customize the storage capacity of this server rack chassis ?

Yes, the PHA Network Security 4U Enterprise Office rackmount server case offers flexible storage options. It supports multiple drive bays and you can customize the storage capacity by adding or removing hard drives as needed.

5. What power options are available for thisrackmount server chassis?

The PHA Network Security 9U Enterprise Office server cases supports a variety of power options, including redundant power supplies, ensuring uninterrupted power and system reliability.

6. Is the server case easy to install and maintain?

Yes, this server chassis is designed to be easy to install and maintain. It features tool-less installation and cable management options to make the installation process hassle-free. In addition, the modular design facilitates maintenance and upgrades.

7. Can I expand the network capabilities of this server pc case?

Absolutely! The PHA Network Security 4U Enterprise Office server pc case offers scalable networking options. It provides ample space for network cards and other accessories to enhance your network capabilities.

8. Does this server rack casehave awarranty?

Yes, this server rack case comes with a standard warranty covering manufacturing defects. It is always recommended to check the warranty terms and conditions for specific details.

Product Specification

Basic Parameters
Type	rack server chassis
Product Structure	4U
M/B Size Support(inch)	EEB(12"13"Max)/CEB(12"10.5")/ATX(12"9.6")/Micro ATX(9.6"9.6")
M/B Brand Support	Suitable for INTEL, ASUS, Supermicro, Taian, MSI, Gigabyte
PSU Support	Redundant power supports 550W/800W/1300W/1600W 80PLUS Platinum series CRPS 1+1 high-efficiency redundant power supply Single battery supports 600W 80PLUS single battery high-efficiency power supply (single battery bracket optional)
PSU Support	Intel/AMD (including X86 and 64-bit)
SGPIO	Not supported (Optional)
Backplane	Supports 24SAS/SATA 12Gbps expansion backplane, 2 12SAS/SATA 12Gbps direct connection backplanes
HDD Support	The front supports 243.5” hot-swappable hard disk slots (compatible with 2.5”), The rear supports 22.5” internal hard disks and 2*2.5” NVMe hot-swappable OS modules (optional)
CD-ROM	Not Support
Cooling System	Overall shock absorption / standard 4 8038 hot-swappable system cooling fan modules (Silent version/PWM, high quality fan with 50,000 hours warranty) The rear internal supports 2*8038 hot-swappable fan modules (optional)
Rail Kit	Optional
Function Parameter
POWER switch/RESET button, power on/hard disk/network/alarm/status indicator lights,
Expansion slot and rear window: rear window (standard, detachable) 7 full-height PCI or PCI-E expansion card slots Hard disk extraction box: it adopts the design of inserting and locking device, which is easy to extract
Appearance Parameters
Material Information	Material	Premium SGCC
	Thickness	T=1.0mm
Product Size (mm)	438mm177mm660mm
Scope Of Application
1.Enterprise Internet application, enterprise high-intensity computing; 2. Internet application (Web, Mail, file server, database, integration, online game server); 3. Virtual host, ASP, access and other applications; 4. Network storage; 5 Electricity , power grid, transportation, industrial automation equipment, finance, manufacturing, weather monitoring and other fields. 6.. Applied to ETH computing power server, IPFS\FIL\BZZ distributed storage server, GPU supercomputing server, IDC server, AI server, etc.
