rackmount case 2U standard matx industrial computer monitoring

Short Description:

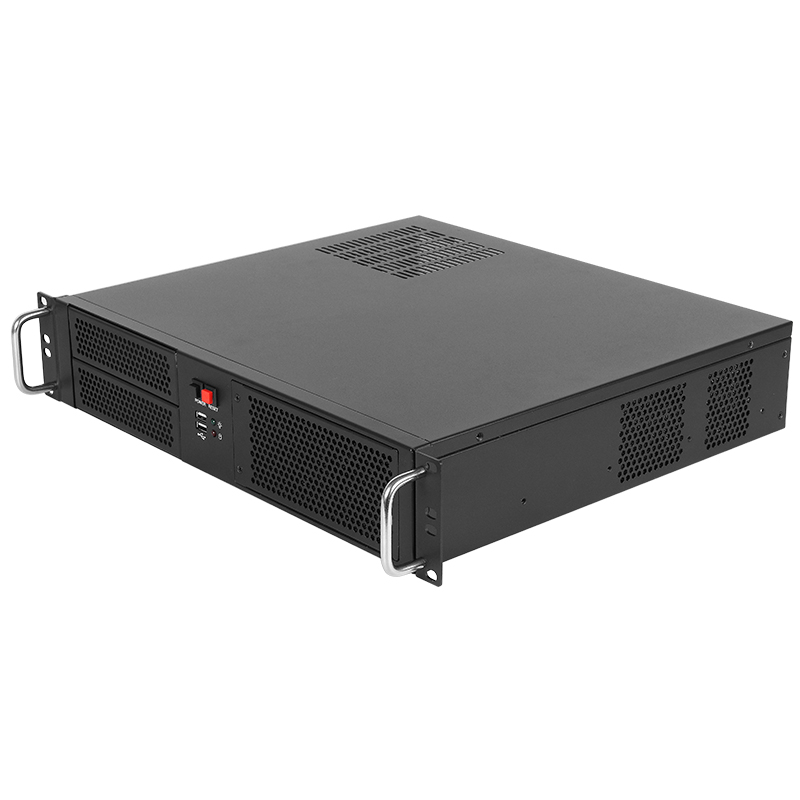

Product name: 2U-388T rack-mounted 19-inch industrial control chassis

Chassis size: width 481 × depth 390 × height 88 (MM) (including mounting ears and handles)

Material: high quality SGCC flat galvanized steel

Thickness: Box 1.2MM

Supported optical drive: 5.25'' CD-ROM drive slot * 2

Product weight: Net weight 5.4KGGross weight 6.8KG

Support power supply: standard ATX power supply PS/2 power supply

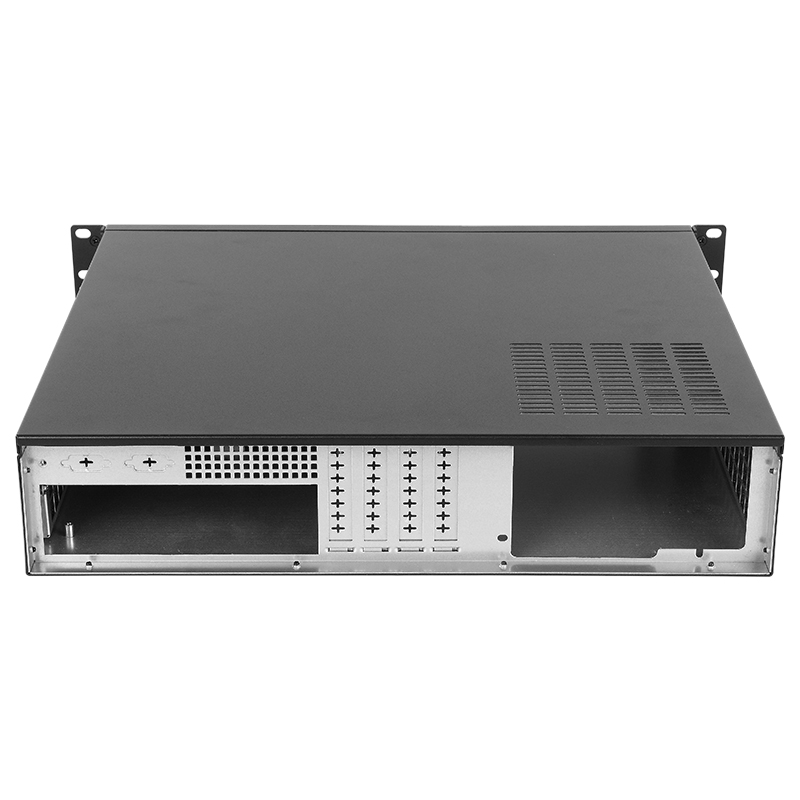

Support expansion: 4 half-height PCI slots2 COM ports

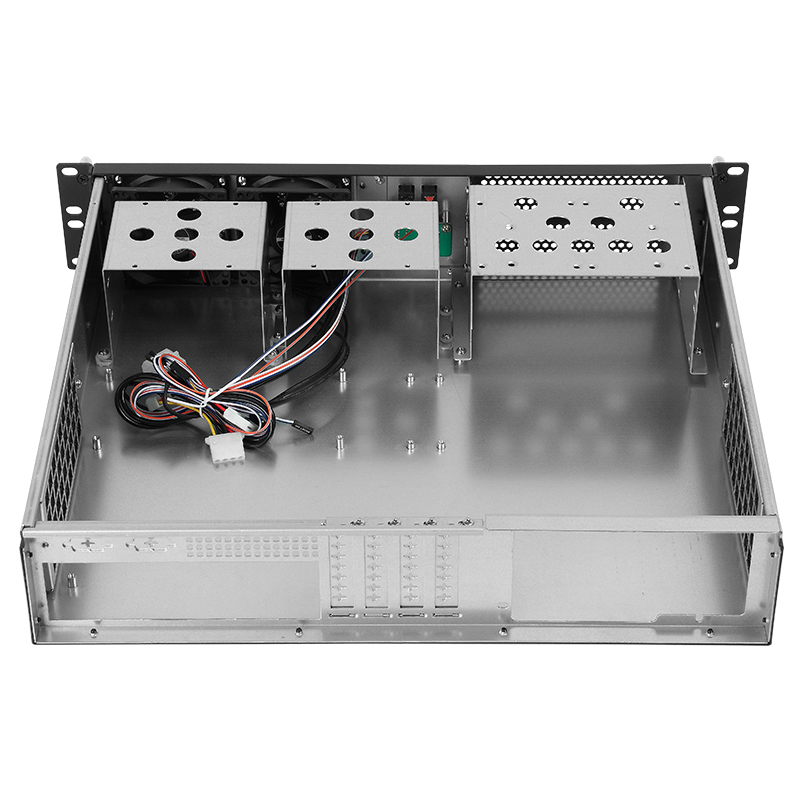

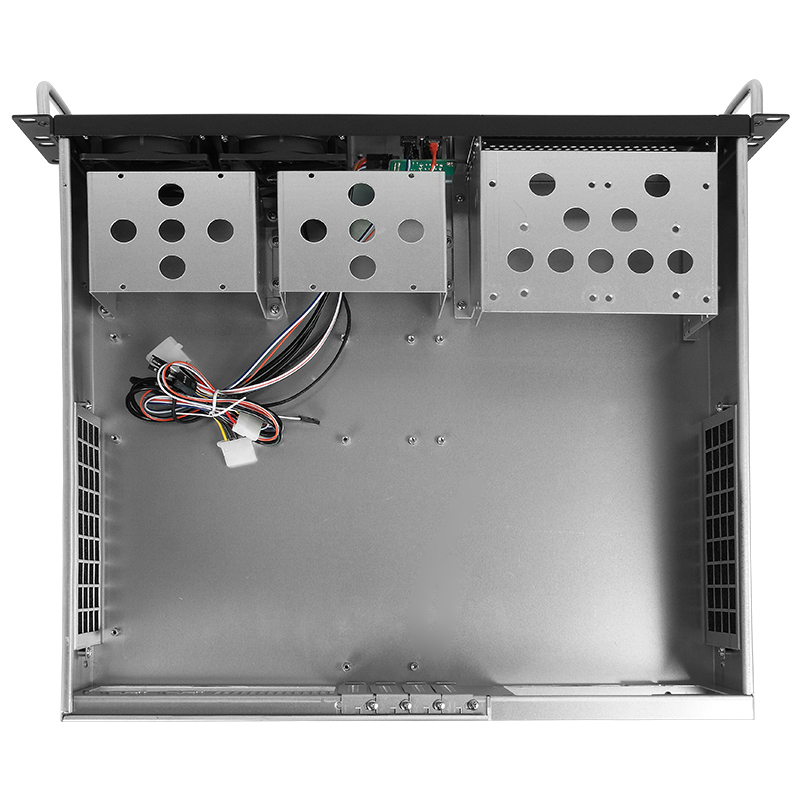

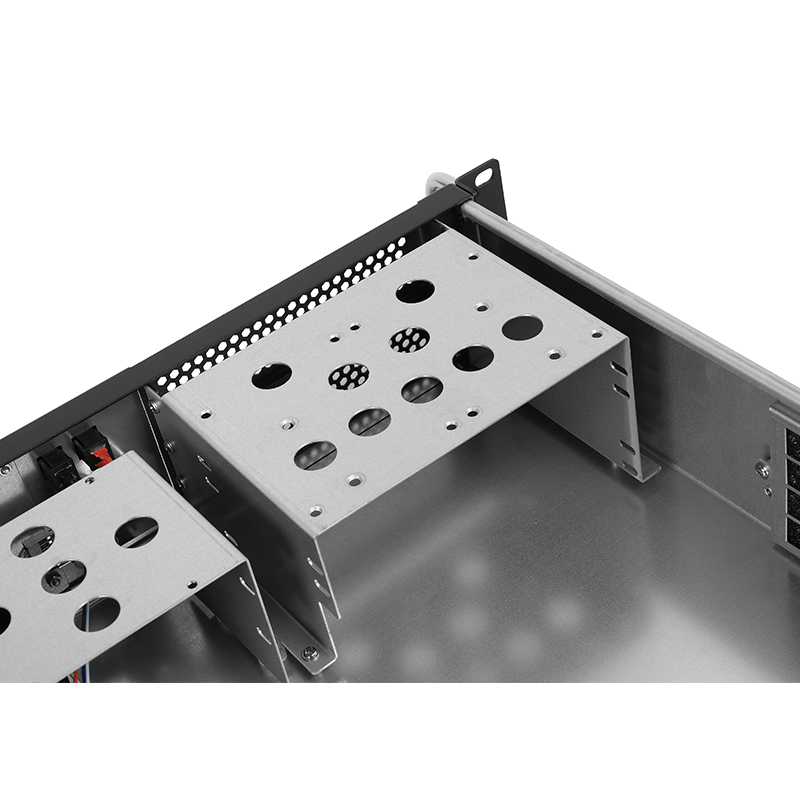

Support hard disk: 2 2.5'' + 2 3.5'' hard disk slots (when installing 245*245MM motherboard) 2 2.5'' + 4 3.5'' hard disk slots (when installing mini motherboard)When no optical drive is installed, two 2.5'' hard disk slots can be installed

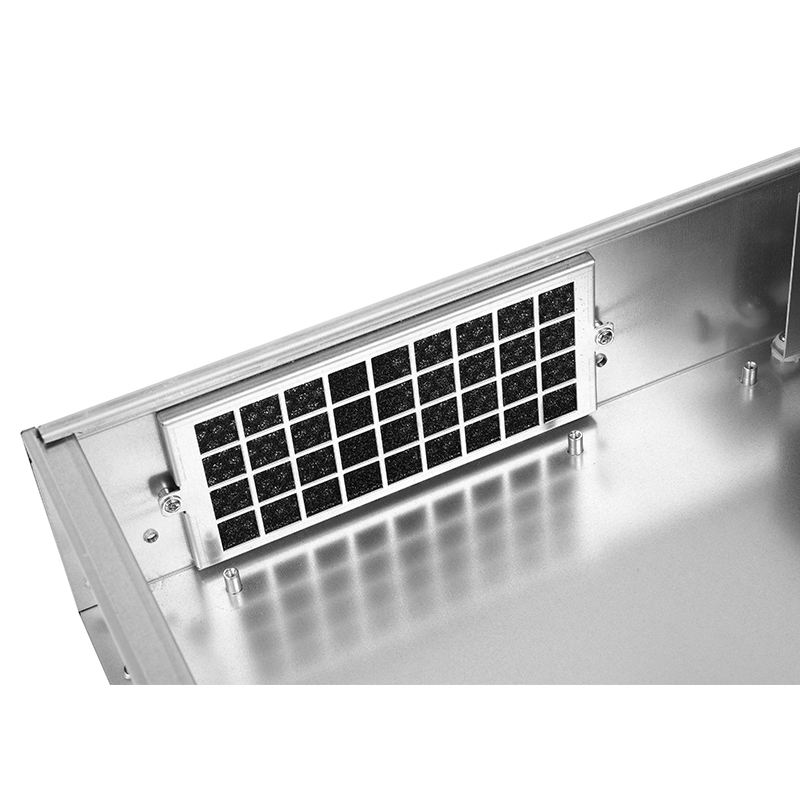

Supported fans: 2 front 8CM silent fansremovable dust screen on front panel

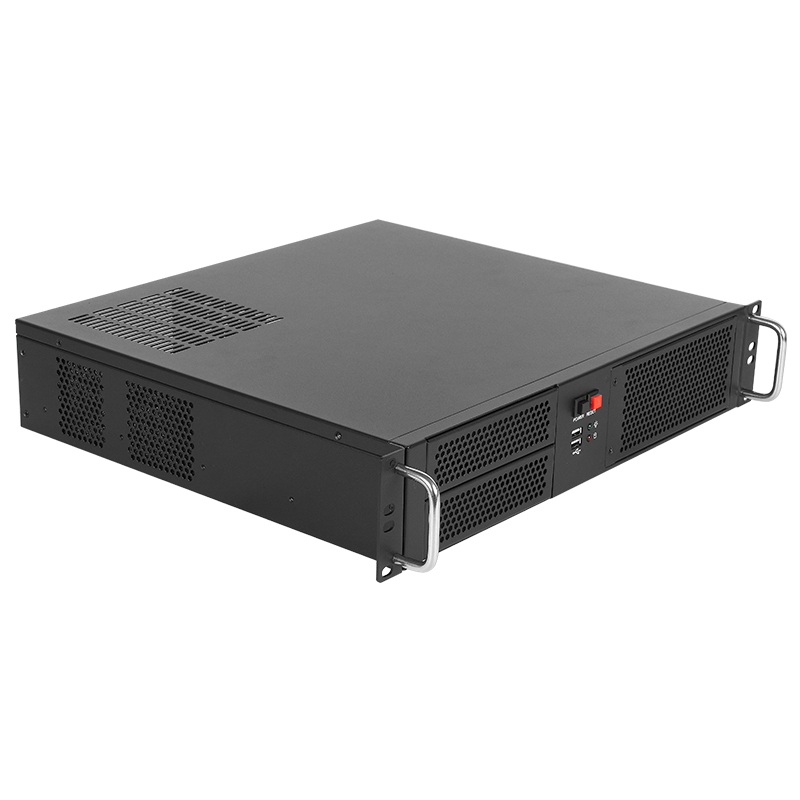

Panel: USB2.0*2Large power switch*1Large restart switch*1Power indicator*1HDD indicator*1

Support motherboard: M-ATXMINI-ITX motherboard 9.6''*9.6'' (245*245MM backward compatible)

Carton size: height 205×width 512×depth 542 (MM)

Tips: :CPU fan height limit 69mmgraphics card length limit 249mmgraphics card height limit 64mm
