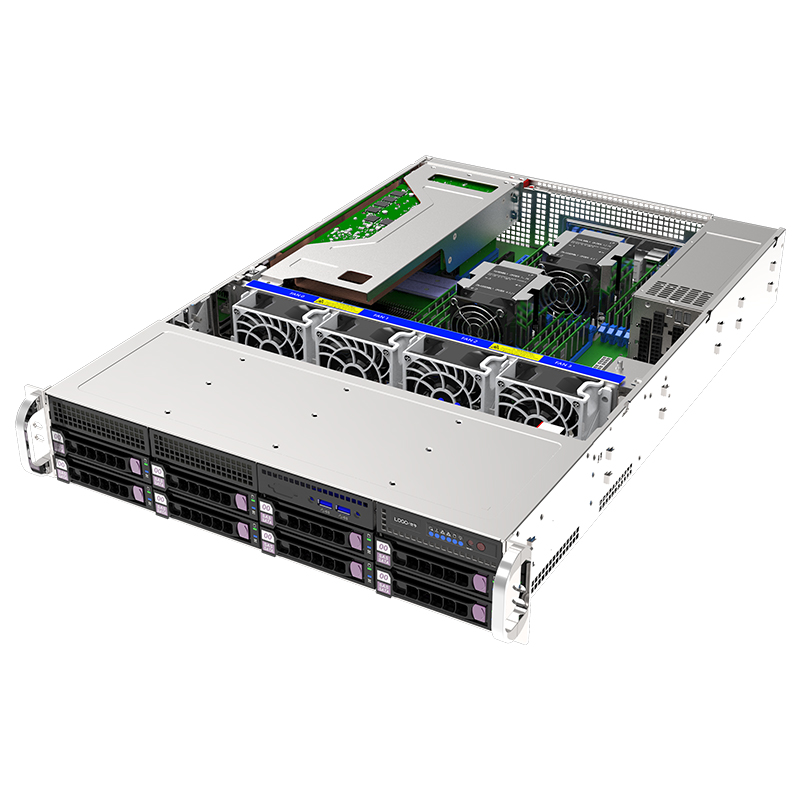

Server chassis air-cooled 2U rack-mounted standard high computing power EEB/CEB

Chassis model: MMS-8208-1.0F

Size material: 438mm*88mm*660mm ，1.0MM ，Shanghai Baosteel SGCC

Front description: POWER switch/RESET button, boot/hard disk/network/alarm/status indicator light,

The front supports 2*USB3.0 interfaces

Storage support: The front supports 8*3.5" hot-swappable hard drive bay (compatible with 2.5"), 2*3.5"/2.5" built-in hard drive bay

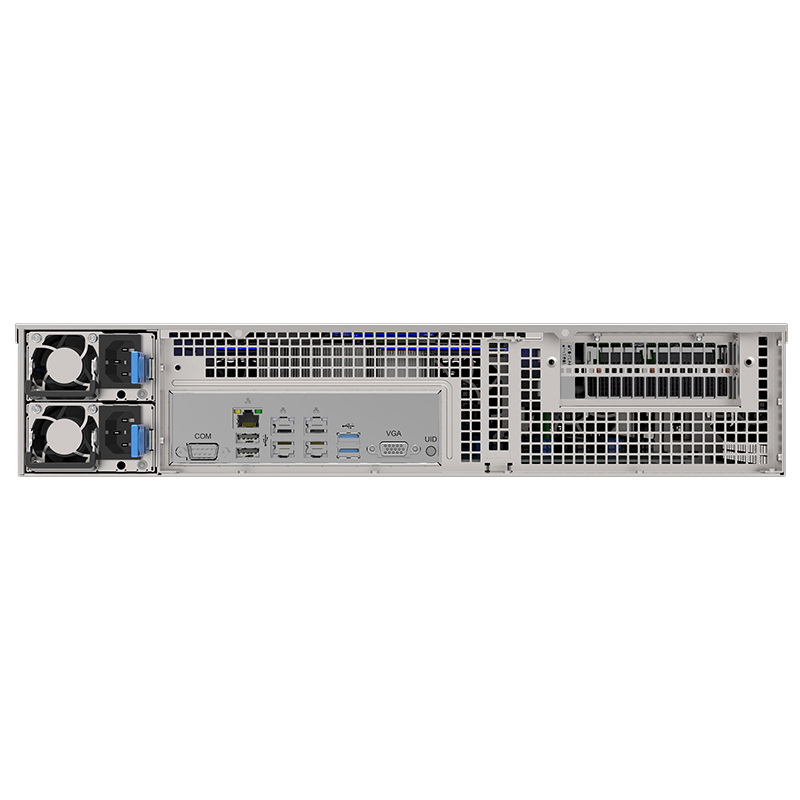

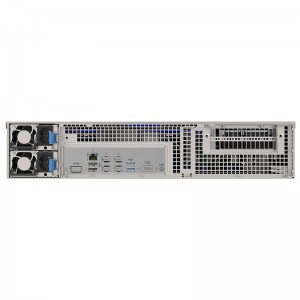

, The rear supports 2*2.5" built-in hard drive bay, (optional) supports 2*2.5" NVMe hot-swappable OS module

PCI-e expansion: supports 7 half-height PCI-e expansion slots

System fan: overall shock absorption/standard configuration of 4 8038 hot-swappable system cooling fan modules.

(Silent version/PWM, high-quality fan warranty 50,000 hours),

Compatible with wind and liquid quick interchange design, (optional) standard water cooling module to solve 1100W dual CPU liquid cooling

Backplane: Supports 8*SAS/STA 12Gbps direct-connect backplane, (optional) 4*SAS/STA +4NVMe hybrid backplane

Power supply: Redundant power supports 550W/800W/1300W 80PLUS platinum series CRPS 1+1 high-efficiency redundant power supply,

Single battery supports 600W 80PLUS single battery high-efficiency power supply (single battery bracket optional)

Motherboard: Supports EEB (12*13)/CEB (12*10.5)/ATX (12*9.5)/Micro ATX standard motherboard

Environmental parameters: 10℃to35℃ working temperature, 8%-90% working humidity (no condensation)

-40℃to70℃ storage temperature, 5%-95% storage humidity (no condensation)）

Support slide rail: Support

The following are the products you choose to purchase:

Hot-swappable hard drive backplane: (optional) 4*SAS/STA +4NVMe direct-connect hybrid backplane

Single/redundant power supply: 1+1 redundancy: 550W/800W/1300W original power supply (Platinum) (optional),

Single battery: 600W 80PLUS power supply, note: the upper single battery bracket space does not support 2.5” OS hard disk module (optional)

2*2.5” OS module: supports optional rear hot-swappable NVME2*2.5” OS module (optional)

GPU rear window kit: Supports optional horizontal rotation of a GPU rear window kit (only for redundant power) (optional)

Hard disk data cable: supports customization of different lengths of data cables (optional)

Power cord: 3C certified high-quality server-specific power cord (optional)

Chassis front panel: supports 2U front panel customization (optional)

Shelf guide rails: 1, 2U supporting shelf guide rails; (optional)

2. 2U tool-free quick-release ball fully drawn guide rail (optional)

Customer customization: Support customer LOGO customization, customized chassis front mask, extraction box color, packaging material OEM,

, supports customized hard disk tray front panel appearance, appearance structure ODM, etc.

### Introducing the ultimate server chassis: 2U rack-mounted air-cooled

In today's fast-paced digital environment, businesses require powerful and reliable server solutions that can handle high computing demands without compromising performance or efficiency. Enter our state-of-the-art **2U rack server chassis** designed for high computing power and optimized for air cooling. This innovative product is designed to meet the stringent requirements of the modern data center, making it ideal for enterprises looking to enhance their IT infrastructure.

#### Unparalleled performance and scalability

The core of our 2U server chassis is dedicated to delivering superior computing power. This case is designed to accommodate EEB (Extended ATX) and CEB (Compact ATX) motherboards, providing the flexibility and expandability your business needs to grow. With support for multiple high-performance CPUs and ample RAM slots, you can easily configure your server to meet your specific workload requirements, whether virtualization, cloud computing or data analytics.

This case is designed to support the latest generation of processors, ensuring you can take advantage of cutting-edge technology to stay ahead of the competition. Able to accommodate multiple GPUs, this server chassis is ideal for applications that require intensive graphics processing, such as machine learning, AI, and 3D rendering.

#### Excellent air cooling technology

One of the standout features of our 2U rackmount server chassis is its advanced air cooling system. In high-performance computing environments, thermal management is critical to maintaining optimal performance and extending hardware life. Our cases feature carefully engineered airflow channels and efficient fan designs to ensure consistent cooling of all components.

The air-cooled design minimizes the risk of overheating, allowing your server to run at peak performance even under heavy load. This not only improves reliability but also reduces the need for additional cooling solutions, thereby lowering operating costs. The case is also designed for easy maintenance, with removable fan filters that can be cleaned or replaced to ensure uninterrupted airflow.

#### Solid build quality and design

Our 2U server chassis are made from high-quality materials and are built to withstand the harsh data center environment. The sturdy steel frame provides exceptional durability, while the sleek design ensures it blends seamlessly into a standard 19-inch rack. The chassis' tool-less design makes it easy to install and upgrade, allowing IT professionals to quickly replace components without the need for special tools.

The front panel is equipped with LED indicators that display power and system status, providing real-time feedback on server performance. Additionally, the case includes multiple USB ports and hot-swappable drive bays, making it easy to connect peripherals and manage storage without downtime.

#### Enhanced connectivity and storage options

In a world where data is king, having the right connectivity options is crucial. Our 2U rack server chassis features multiple PCIe slots, allowing a variety of expansion cards to be installed, including network interface cards (NICs) and storage controllers. This flexibility enables you to customize the server to meet your specific network and storage needs.

The chassis supports a variety of storage configurations, including SSDs and HDDs, and offers RAID setup options for enhanced data redundancy and performance. With ample drive bays and support for hot-swappable drives, you can easily expand storage capacity as your business grows.

#### Energy efficiency and cost effectiveness

In addition to high performance, our 2U server chassis are designed with energy efficiency in mind. Air cooling systems not only keep your components cooler but also reduce energy consumption compared to traditional cooling methods. This means lower electricity bills and a smaller carbon footprint, making it an environmentally friendly option for businesses looking to bolster their sustainability efforts.

Additionally, the case is priced very competitively and its performance is an exceptional value. By investing in our 2U rackmount server chassis, you're not just buying hardware; You are making a long-term investment in your business's IT infrastructure.

#### in conclusion

In summary, our **2U rackmount air-cooled server chassis** is the ultimate solution for businesses looking for high computing power, reliability and efficiency. With its advanced cooling technology, rugged build quality and flexible configuration options, the chassis is designed to meet the demands of today's data-driven world. Whether you run a small business or manage a large enterprise, our server chassis will help you achieve your IT goals with confidence.

Upgrade your server infrastructure today and experience the difference our 2U rackmount server chassis brings. Embrace the future of computing with solutions that combine performance, scalability, and energy efficiency
