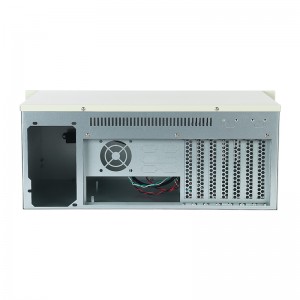

Short 250 supports 170*215 motherboard 4u rack case

Short Description:

Model: MM-4U-250L-H

Product name: 4u rack case

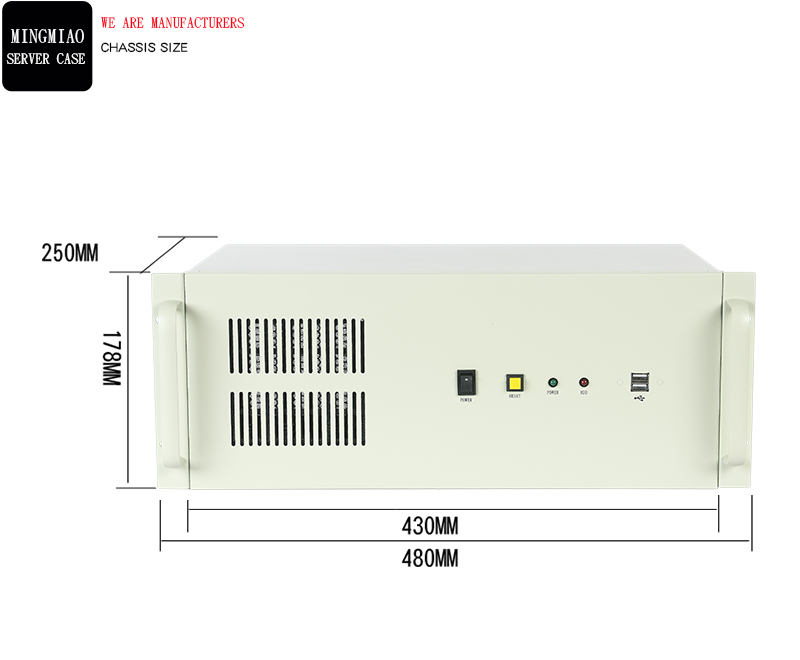

Product weight: Width 430*Height 178.1*Depth 250.1(MM) (excluding mounting ears and handles)

Product color: industrial black

Material: high quality SGCC

Thickness: 1.0MM

Product weight: Net weight 4.251KGGross weight 5.21KG

Supported power supply: standard ATX power supply PS/2 power supply

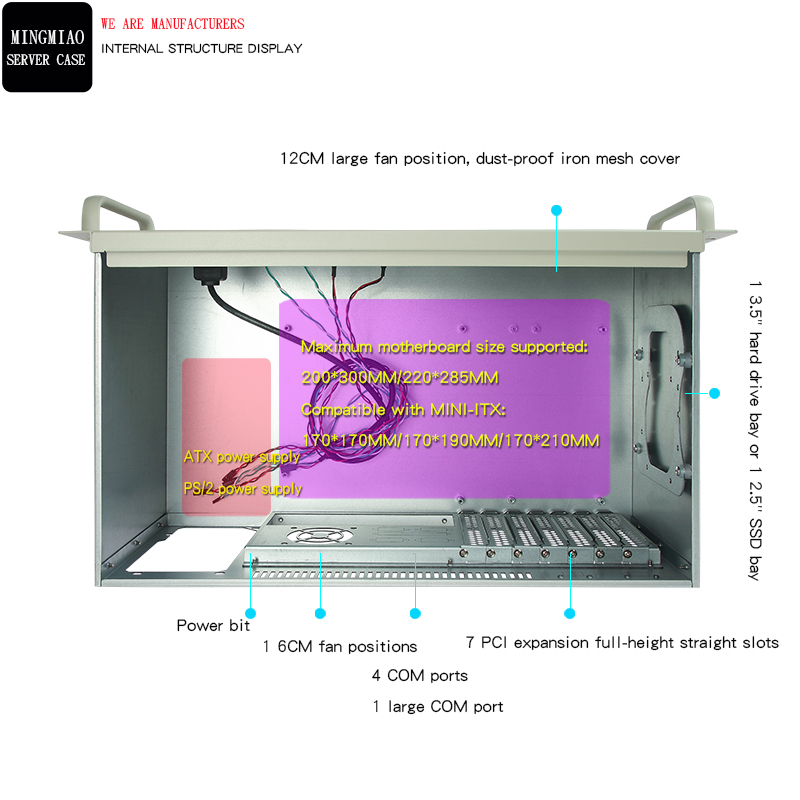

Expansion slots: 7 full-height PCI straight slots, 4 COM ports, 1 large COM port

Support hard disk: 1 3.5'' HDD or 1 2.5'' SSD (optional)

Supports fans: 1 12CM fan position in the front (1 iron edge dust-proof grille included) 1 6CM fan position in the rear window

Panel: USB2.0*2boat power switch*1reset switch*1power indicator light*1hard disk indicator light*1

Support motherboard: 200*300MM/220*285MM

Compatible with MINI-ITX: 170*170MM/170*190MM/170*215MM

Packing size: corrugated paper 560*380.1*260.1(MM) (0.05531CBM)

Container Loading Quantity: 20": 466 40": 972 40HQ": 1225

Send email to us Video Download as PDF Download as World

Product Detail

Product Tags

Product Description

1. Can I use Short 250 in a 4u rack case to support 170*215 motherboard?
Yes, Short 250 supports 170*215 motherboards and is compatible with 4u rack chassis. The compact design of the Short 250 allows it to fit perfectly into a 4u rack case without any problems.

2. What is the size of the motherboard that supports 170*215?
Supports 170*215 motherboards and has a compact size of 250mm x 170mm x 215mm (length x width x height). This makes it ideal for a compact rack mount box.

3. What are the main features?
Designed with space and energy conservation in mind. It supports 170*215 motherboards and is equipped with a series of I/O ports and expansion slots for added flexibility. It also offers excellent compatibility with 4u rack enclosures.

4. Is it suitable for professional server setup?
Yes, suitable for professional server setups due to its reliable performance and compatibility with 4u rack enclosures. It's ideal for businesses looking to build compact and efficient server systems.

5. Can I play games or multimedia applications?
Although primarily designed for server applications, it can also be used in gaming or multimedia setups. Its compact size and compatibility with 4u rack enclosures make it a versatile option for a variety of use cases.

Product Display

FAQ

We provide you with:

large inventory

Professional Quality Control

good packaging

delivery on time

Why choose us

1. We are the source factory,

2. Support small batch customization,

3. Factory guaranteed warranty,

4. Quality Control: The factory will test the goods 3 times before delivery

5. Our core competitiveness: quality first

6. The best after-sales service is very important

7. Fast delivery: 7 days for personalized design, 7 days for proofing, 15 days for mass products

8. Shipping method: FOB and internal express, according to the express you specify

9. Payment method: T/T, PayPal, Alibaba Secure Payment

OEM and ODM services

Through our 17 years of hard work, we have accumulated rich experience in ODM and OEM. We have successfully designed our private molds, which are warmly welcomed by overseas customers, bringing us many OEM orders, and we have our own brand products. You just need to provide pictures of your products, your ideas or LOGO, we will design and print on the products. We welcome OEM and ODM orders from all over the world.
